Mining Rock Coal Hammer Mill Crusher Machine Electric Motor

Name: Mining Rock Coal Hammer Mill Crusher Machine Electric Motor
Brand: Ascend
Price: 1 USD

Brand Name : Ascend

Model Number : PC600x400 PC800x600 PC1000x800

Certification : ISO9001, CE

Place of Origin : Zhengzhou, China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 7-10 working days

Packaging Details : 1. Standard parts packed in the wooden cases. 2. Big parts packed by plastic membrane. 3. The whole machine is loaded in the container.

Product : Hammer Mill Crusher Machine

Application : Mining Rock Coal

Capacity : 5-200tph

Motor : Electric Motor

Warranty : One year

Input size : <100mm, <250mm

Output size : <10mm

Founction : Fine crushing

After sall service : Engineers available to service machinery overseas, Online support, Field installation, commissioning and training, Video technical support

Contact Now

Mining Rock Coal Hammer Mill Crusher Machine Electric Motor

Hammer Mill Crusher Machine is suitable for various of fragile materials, especially for mid-hard and Low corrosion materials with pressure resistance strength is no more than 100Mpa and humidity is lower than 15%, such as coal, salt, gypsum, chalk, alums, blocks, limestone, etc.

Mining Rock Coal Hammer Mill Crusher Machine Electric Motor

Hammer Mill Crusher Machine Working principle

In the hammer crusher mill machine,the motor drives the rotor to rotate at a high speed through the belt,and on the rotor there are series of hammers.when the material get into the working area of hammers,the rotating hammers with high rotation speed are crushing the material,the crushed product meeting the required size can be discharged by the outlet and become the final prodcuts,the large size prdocut are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.

Mining Rock Coal Hammer Mill Crusher Machine Electric Motor

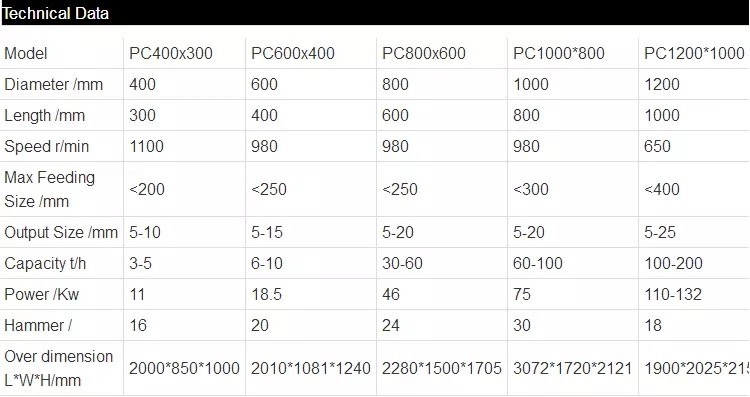

Main Technical Parameters

Mining Rock Coal Hammer Mill Crusher Machine Electric Motor
