Rock Gold Hammer Mill Crusher Crushing Hard Stones Grinder PC 800x600 Model Machine
Product Description
Hammer crusher is widely used in fine grinding medium hardness materials in industrial departments such as concentrating plants, refractory plants, cement plants, glass factories, etc. The materials are fed into the machine from the upper feed port and are hit by high-speed moving hammers. It is crushed by impact, shearing and grinding. In the lower part of the rotor, a sieve plate is arranged, and the size of the pulverized material smaller than the mesh size is discharged through the sieve plate, and the coarse-grained grade larger than the mesh size is retained on the sieve plate and continues to be struck and ground by the hammer, and finally passed through the sieve plate.
Mobile Hammer Crusher

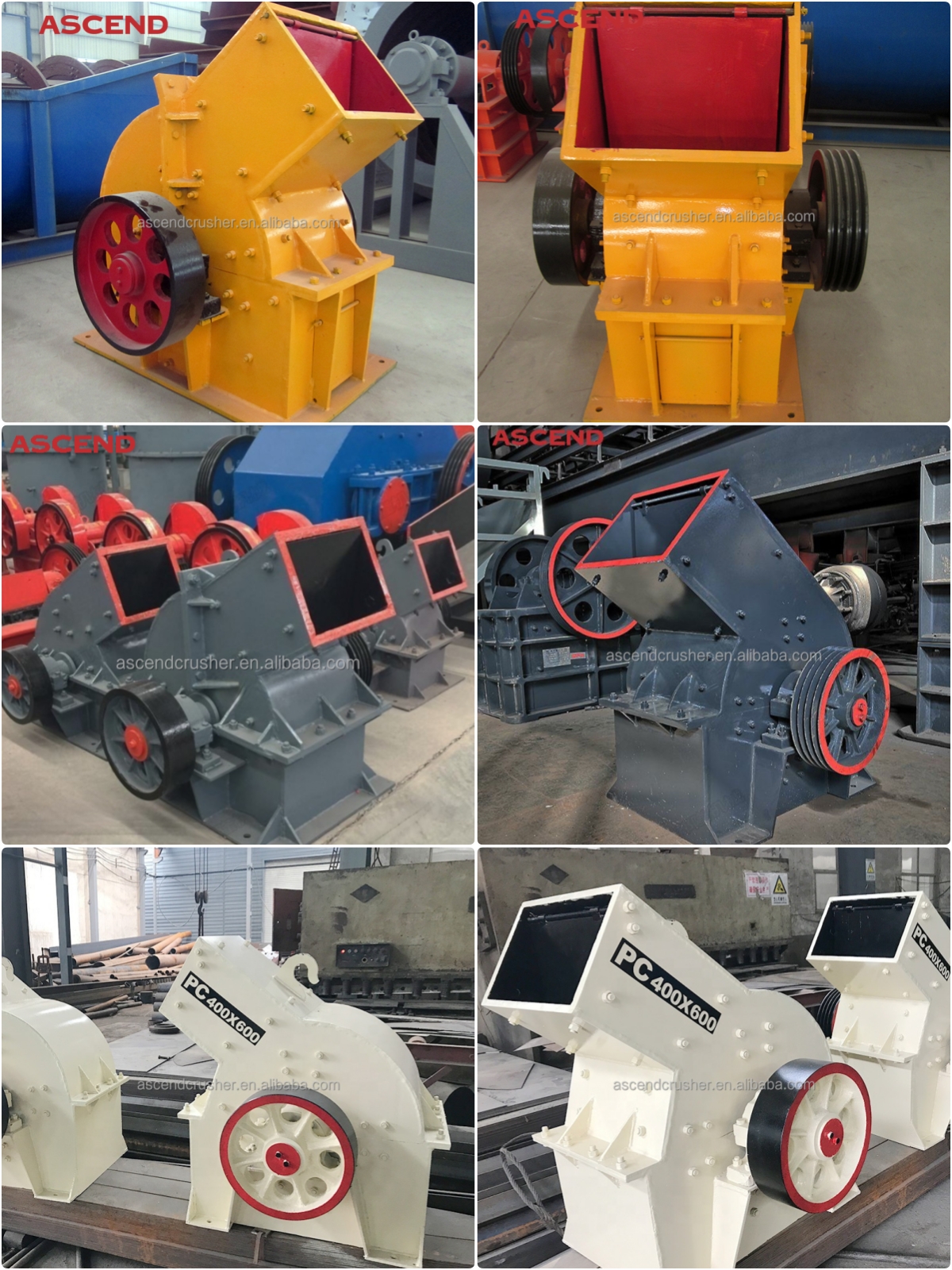

Detailed Images
Spare Parts
Working Principle
In the hammer crusher mill machine,the motor drives the rotor to rotate at a high speed through the belt,and on the rotor there are series of hammers.when the material get into the working area of hammers,the rotating hammers with high rotation speed are crushing the material,the crushed product meeting the required size can be discharged by the outlet and become the final prodcuts,the large size prdocut are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
Specifications
| Model | Max. feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (kg) |
| PC300×200 | ≤100 | ≤10 | 2-5 | 5.5 | 600 |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
| PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| PC1000×800 | ≤200 | ≤15 | 20-40 | 115 | 7900 |
| PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |
Working Sites
Packing&Shipping
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
